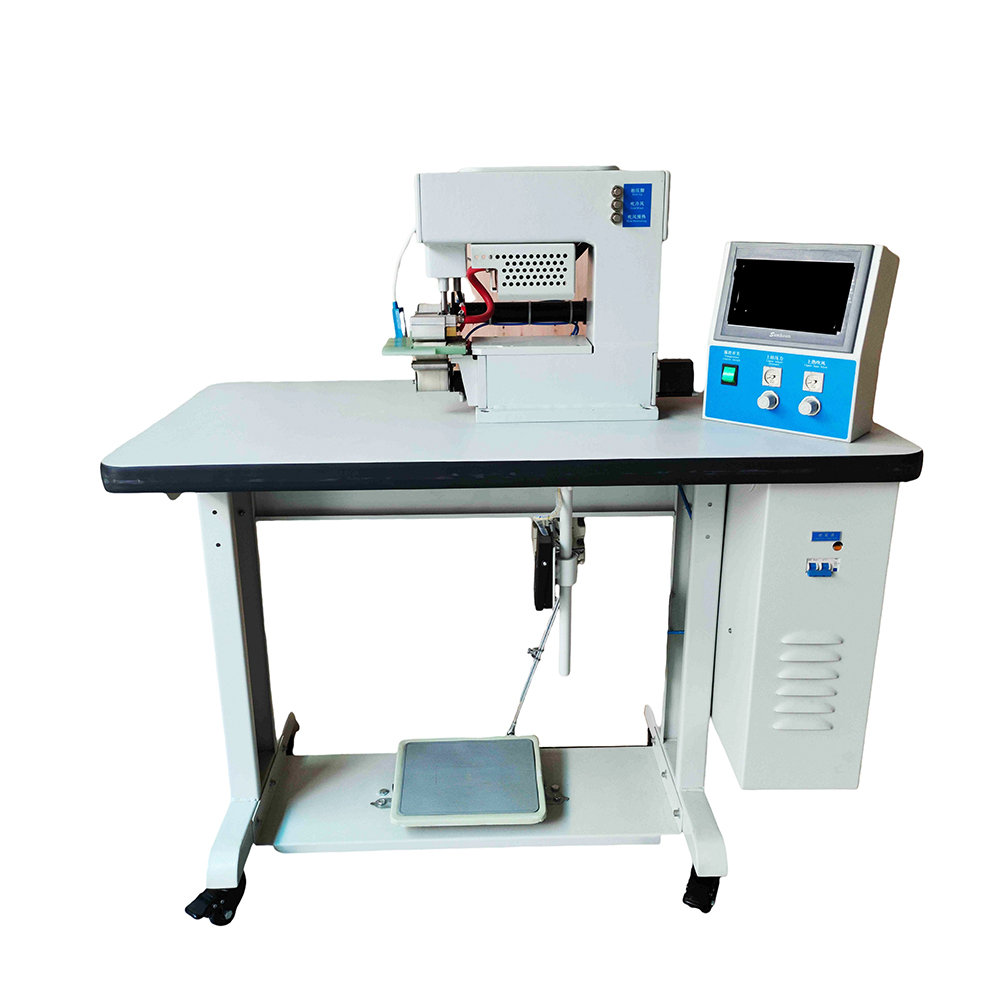

无缝折边机HT-806

2026-03-25 45

核心特点

1. 温控精准:上下皮带、发热槽调温,加热恒定,避免胶层融化不均或布料烫损;

2. 调速灵活:上下皮带速度独立调节,适配不同厚度/弹性的织物(无缝内衣、运动服、泳衣等);

3. 操作便捷:7寸触摸屏可视化编程,10组缩率程序可储存常用工艺,换款调试效率高;

4. 稳定性高:皮带压力可精准调节,成品折边平整无气泡、无起翘;

5. 自动化程度:半自动操作,电气结合设计,相比纯手工效率提升5-10倍

Core Features

1. Precise Temperature Control

The upper and lower belts and heating tank are temperature-controlled with constant heating, avoiding uneven melting of the adhesive layer or damage to the fabric.

2. Flexible Speed Regulation


适用产品:

1、无痕男、女士内裤,各部位折边、包边

2、无痕T恤,袖口,下摆,后领折边、包边

3、无痕衬衫领口,下摆,袖口,折边、包边

4、无痕袖套、护膝、折边、包边

1、All parts of seamless men’s and women’s underwear, folding, hemming

2、The cuffs of hem, back collar of non-trace T-shirt folding, hemming

3、The collar mouth, hem,cuffs of non-trace shirt,folding, hemming

4、Non-trace sleeve, knee protector,folding, hemming


产品型号 Model

HT-806

电源电压 Power

220伏交流 50赫兹 AC220V 50HZ

额定功率 Rated power

1000瓦 1000W

温度精准 Temp control

上下皮带/发热槽加热±1℃(独立调温)

工作速度 Speed

3m/min

外型尺寸 Exterior  size

(L*W*H)115*55*125cm

净重 Net weight

110kg

操作屏规格

7寸触摸屏
