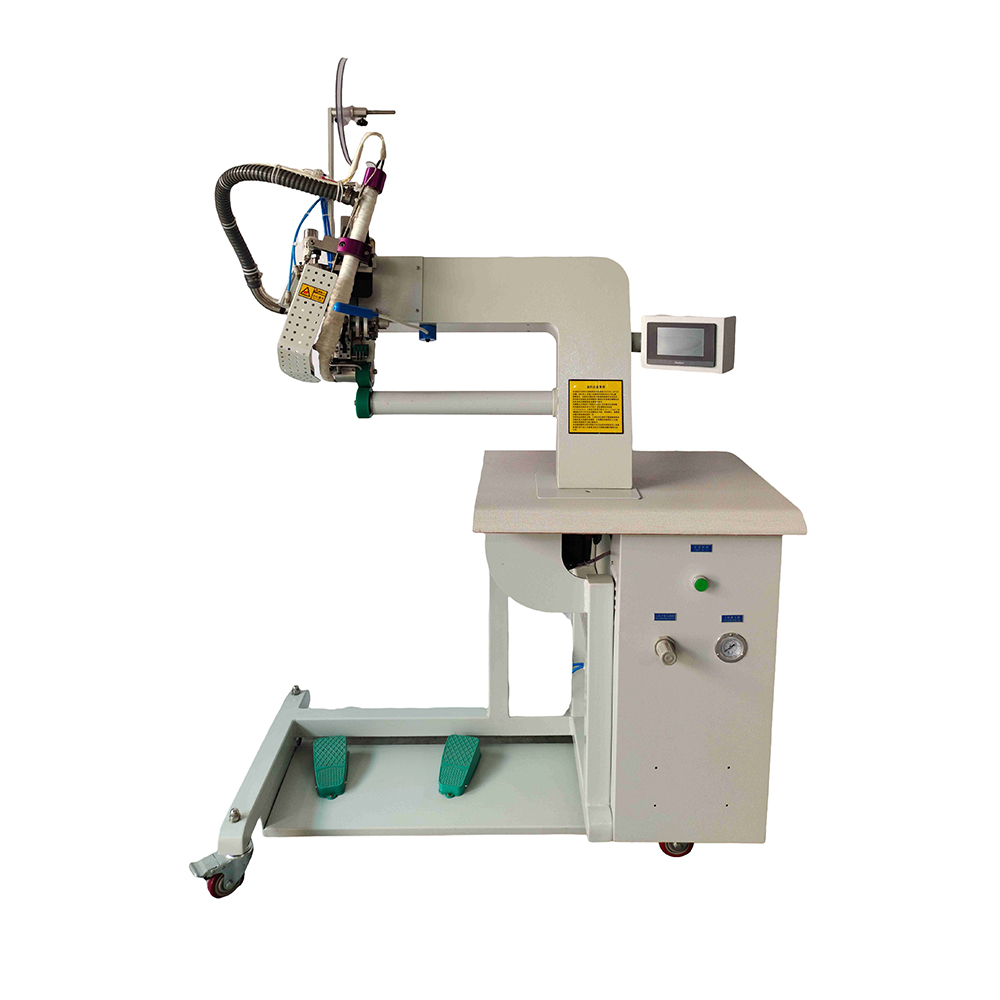

热风缝口密封机(半台板横臂机)型号:HT-10+

2026-03-25 19

特点:

1.触摸显示显控,采用集成芯片,使本机动作更稳定,动作更灵敏,质量更可靠,所有参数都在液晶显示屏里,操作十分方便。

2.自动温度控制,稳定性高,温度精确±1℃,温度上限设置,保护发热丝。

3.上下压轮同步转动,自动补偿调节虚位,自动微退功能减少压带空白。

4.发热枪供风选用自然高压鼓风机专门供及发热管之用,避免了常规用高压泵之起源的水分冲击发热内管,使之更加耐用。


Features:

1. Touch display control, using integrated chip, making the machine more stable, more sensitive, more reliable quality, all parameters are in LCD display, and the operation is very convenient.

2. Automatic temperature control, high stability, temperature accurate ±1℃, temperature limit setting, to protect the heating wire.

3. The upper and lower pressure wheels rotate synchronously, automatically compensate and adjust the backlash, and the automatic micro-retreat function reduces the blank of the pressure belt. .

4. The air supply of the heating gun is selected by a natural high-pressure blower specially used for the heating pipe, avoiding the moisture impact on the heating inner pipe from the of the high-pressure pump commonly used, making it more durable.


产品型号 Model

HT-10+

电源电压 Power

220伏交流 50赫兹 AC220V 50HZ

额定功率 Rated power

2500瓦 2500W

温度 Temp control

无段可调 常温~700℃

工作速度 Speed

1~24m/min 无段变速

压缩空 Air compression

0.35-0.5Mpa

压轮宽度 Width of roller

光面25mm标准型,其它如网纹,直纹等可自由选择Mill finish standard:25mm,others can bechniced(ie:dictyonitic and ruled surface)

可吹胶带宽度 Adhesive tape width

标准型14mm-22mm,其它宽度根据客户自由选择14mm-22mm(standard)others can be choiced

上压轮升降距离 Upper roller lift

18mm-25mm

外型尺寸 Exterior  size

(L*W*H)1350*640*1500mm

净重 Net weight

130kg

缝合跳漏防止                        Prevention against jumping over sewing work

在热风管与滚轮启动停止与热风管摆动之间均有可供利用调节以防止封口的跳漏
