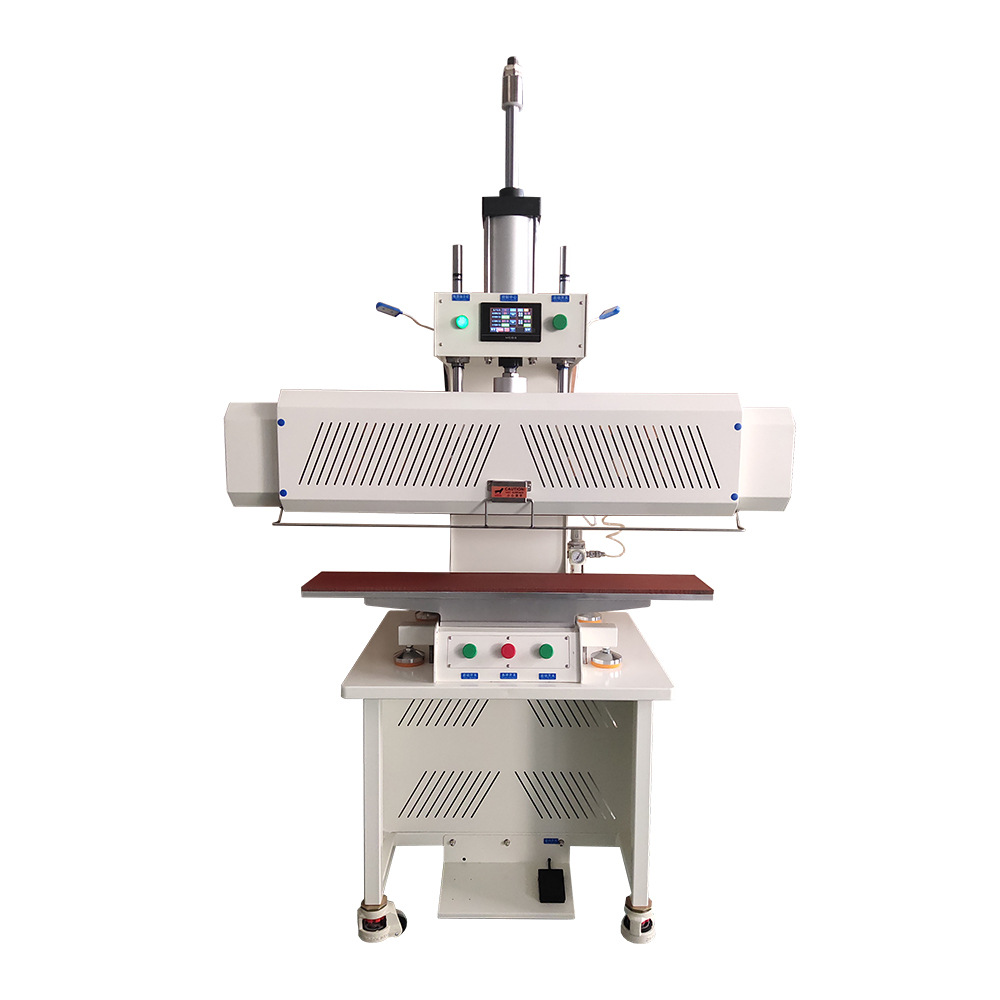

冷热一体压烫机 (有冷水机)

2026-03-25 26

功能特点 Feature

1.触屏式PLC控制系统,机器工作更加方便高效。

2.增加冷模和热模独立选择:独立热压温度控制、冷压时间控制。

3.选择手动或脚踏控制模式:独有双工作时间模式可选。

4.气动垂直加压,省时省力的同时并保证足够压力。

5.自动平行工作台,能够确保被压衣物每个地方的压力平衡。

6.工数位设置,完成加压时间后,加压板自动提升确保每次加压时间相同。


1. The touch screen PLC control system makes the machine work more convenient and efficient.

2. Add cold and Hot Mould Independent Choice: Independent hot pressing temperature control, cold pressing time control.

3. Select Manual or pedal control mode: exclusive dual working time mode is optional.

4. Pneumatic vertical pressure, save time and labor while ensuring adequate pressure.

5. Automatic parallel work table, can ensure the pressure balance in every place of the pressed clothes.

6. After the pressure time is finished, the pressure plate is automatically lifted to ensure the same pressure time each time.


型号 Mode

HT-LR1020

HT-LR620

HT-LR420

工作面积 Working area

100*20cm

60*20cm

40*20cm

温度范围定时 Temp

常温~400℃Up to 400℃

电压/功率 Voltage/Powere

AC220V/3200w

AC220V/2500w

AC220V/2000w

压缩空气 / 加压时间 Air compressio / Timing Range

2-5.5kg/cm²   /    1-999s

气缸行程 Lift travel

SCJ125*200-50

SCJ100*200-50

净重 Net weight

180KG

170KG

160KG

毛重

220kg

210kg

205kg

木箱尺寸

(L)142*(W)

82*(H)208cm

(L)102*(W)

82*(H)202cm

(L)102*(W)

82*(H)202cm
