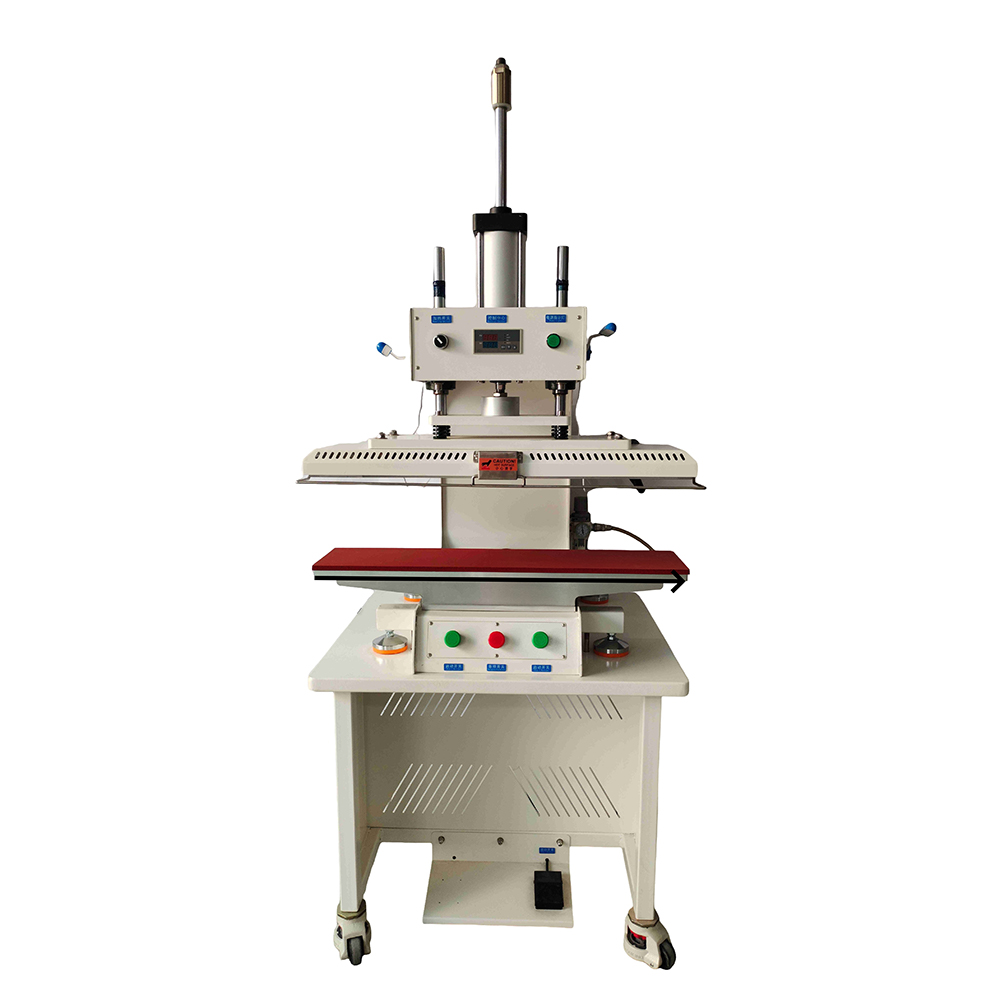

热压机(带机架)

2026-03-25 20

功能特点

Feature

1.气动垂直加压,省时省力的同时并保证足够压力。

2.自动平行工作台,能够确保被压衣物每个地方的压力平衡。

3.分体式加压板与发热板可满足不同要求的生产方式。

4.工作表面自动恒温加热。


1.Pneumatic vertical pressure,save time and labor while ensuring adequate pressure.

2.Automatic parallel work table, can ensure the pressure balance in every place of the pressed clothes.

3.Split pressure plate and heating plate can meet different requirements of the mode of production.

4.Automatic constant temperature heating of working surface.


型号 Mode

HT-1020

HT-820

HT-420

工作面积 Working area

100*20cm

80*20cm

40*20cm

温度范围定时 Temp

常温~400℃Up to 400℃

电压/功率 Voltage/Powere

AC220V/3000w

AC220V/2500w

AC220V/1800w

压缩空气

Air compressio

2-5.5kg/cm²

气缸行程 Lift travel

SCJ100*200-50

加压时间 Timing Range

1-999s

净重 Net weight

130KG

125KG

120KG

毛重

176kg

170kg

165kg

木箱尺寸

(L)114*(W)

76*(H)128cm

(L)92*(W)

76*(H)128cm

(L)80*(W)

76*(H)128cm
