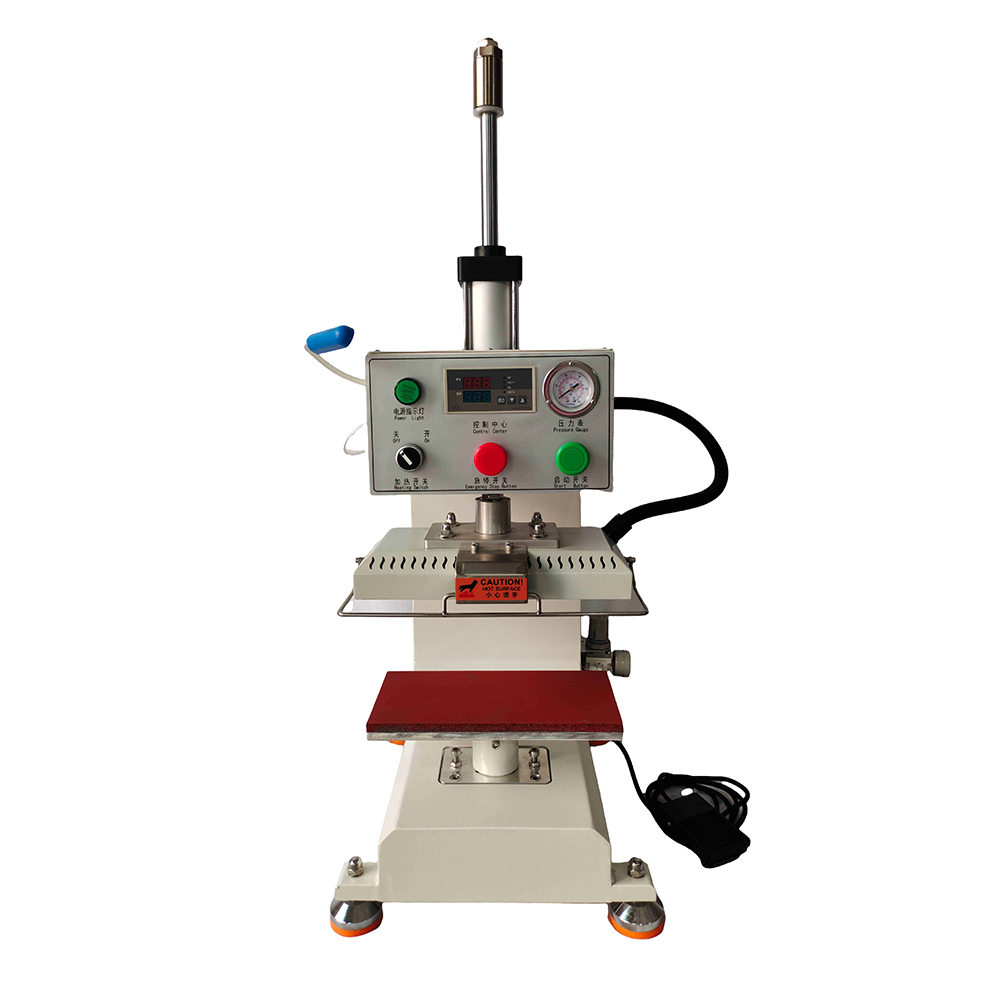

热压机

2026-03-25 25

功能特点

Feature

1.气动垂直加压,省时省力的同时并保证足够压力。

2.自动平行工作台,能够确保被压衣物每个地方的压力平衡。

3.分体式加压板与发热板可满足不同要求的生产方式。

4.工作表面自动恒温加热。

5.工数位设置,完成加压时间后,加压板自动提升确保每次加压时间相同

6.工作台面积可以更换尺寸。


1.Pneumatic vertical pressure, save time and labor while ensuring adequate pressure.

2.Automatic parallel work table, can ensure the pressure balance in every place of the pressed clothes.

3. Split pressure plate and heating plate can meet different requirements of the mode of production.

4.Automatic constant temperature heating of working surface.

5. After the pressure time is finished, the pressure plate is automatically lifted to ensure the same pressure time.

6. The size of worktable can be changed.


型号
Mode

工作面积
Working area

温度范围定时Temp

定时

Press time

电压/ 功率Voltage/Power

压缩空气
Air compression

气缸行程
Lift  travel

净重
Net weight

毛重

木箱尺寸

HT-315

30*15cm

Up to 400℃



常温~400℃

1-999s





AC220V/1800w





2-5.5kg/cm²



Sc63x150mm

40kg

52kg



长55cm

宽52cm

高100cm

HT-320

30*20cm

42kg

57kg

HT-325

30*25cm

44kg

59kg

HT-330

30*30cm

46kg

62kg

HT-415

40*15cm

44kg

59kg

HT-425

40*25cm

46kg

62kg
